CLAVAL

CLA-VAL produces the a high quality automatic control valves, serve as waterworks distribution systems and fire protection systems, their products meet or exceed all industry requirements for both fresh water and sea water service.

CLA-VAL fire protection products include pump pressure relief valves, pump suction control valves, deluge valves, pressure regulating valves and backflow preventers.





Air Release Valve

• 34 Air Release Valve - FM Approved Data sheet



  Cla-Val Series 34 Air Release Valves are designed to vent entrained air that collects at high points in a pipeline. This valve continuously eliminates air from a system by releasing small quantities of air before large air pockets can occur.

Pressure Reducing Valves

• 90-21 Pressure Reducing Valve - UL, ULC Data sheet



  Cla-Val 90G-21 (globe) and 90A-21 (angle) Pressure Reducing Valves automatically reduce a higher inlet pressure to a steady lower outlet pressure regardless of changing flow rate and/or varying inlet pressure.

Pressure Relief Valves

50B-4KG-1 Pressure Relief Valve - UL, FM, ULC Data sheet

The Cla-Val Model 50B-4KG1 Globe / 2050B-4KG1 Angle Pressure Relief Valve is designed specifically to automatically Relieve excess pressure in fire protection pumping systems.

Pilot controlled, it maintains constant system pressure at the pump discharge within very close limits as
Demands change.

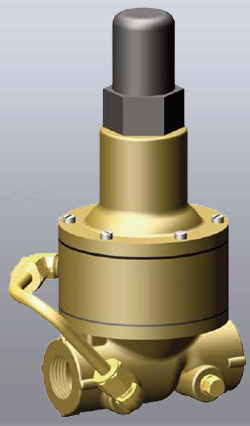

55L Pressure Relief Valve - UL, FM Data sheet

The Cla-Val Model 55L (UL Listed FM approved) Pressure Relief Valve is a direct-acting, spring loaded, diaphragm type relief valve. The valve may be installed in any position and will open and close within very close pressure limits.

Deluge Electric Valve

134-05 Solenoid Control Valve - UL, ULC Data sheet

The Cla-Val Model 134-05 Solenoid Control Valve is an on-off control valve which either opens or closes upon receiving an electrical signal to the solenoid pilot control. This valve consists of a 100G/2100G U.L. listed hytrol main valve, a three-way solenoid valve and an auxiliary pilot valve.

This pilot control system alternately applies pressure to/or relieves pressure from the diaphragm chamber of the main valve. It is furnished either normally open (de-energize solenoid to open) or normally closed (energize solenoid to open).



Backflow Preventers

D-4 Double Check Backflow Preventer Data sheet

The Model D-4 Double Check Valve Assembly is a reliable means of Backflow protection for intermediate degrees of hazard. The assembly is carefully constructed of corrosion resisting materials and consists of two independently acting spring-loaded toggle Lever check valves, two shut-off valves and four test cocks.
